CNC Oxy Cutter - Plasma Option - Gantry axis

PEMULWUY, NSW

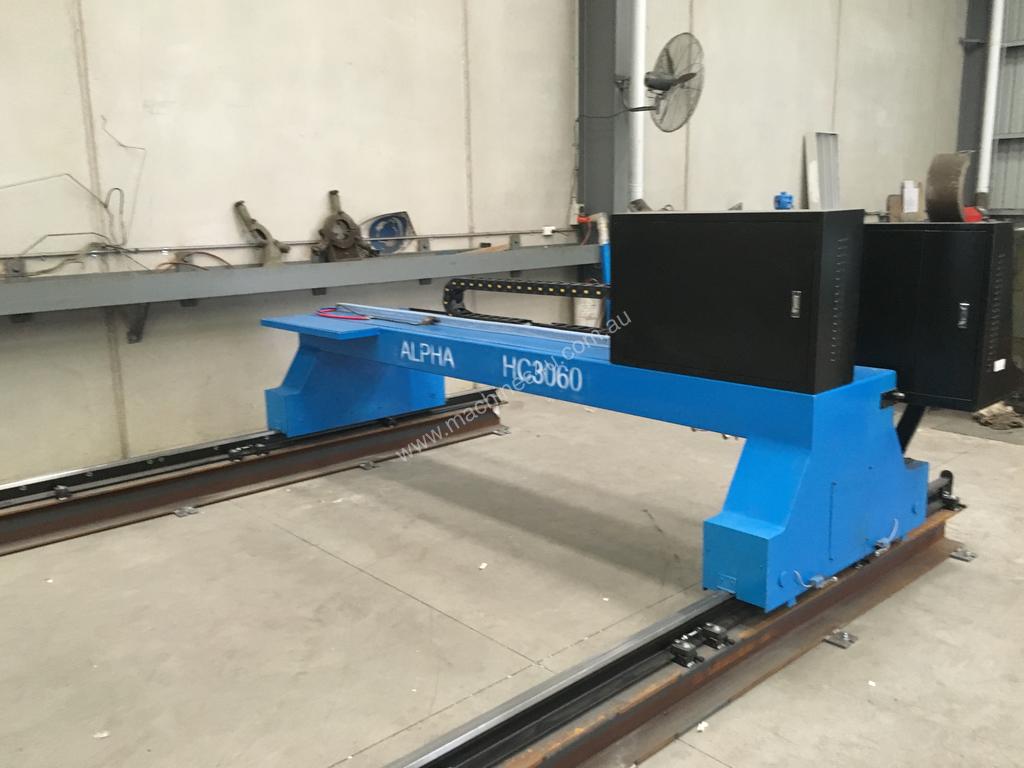

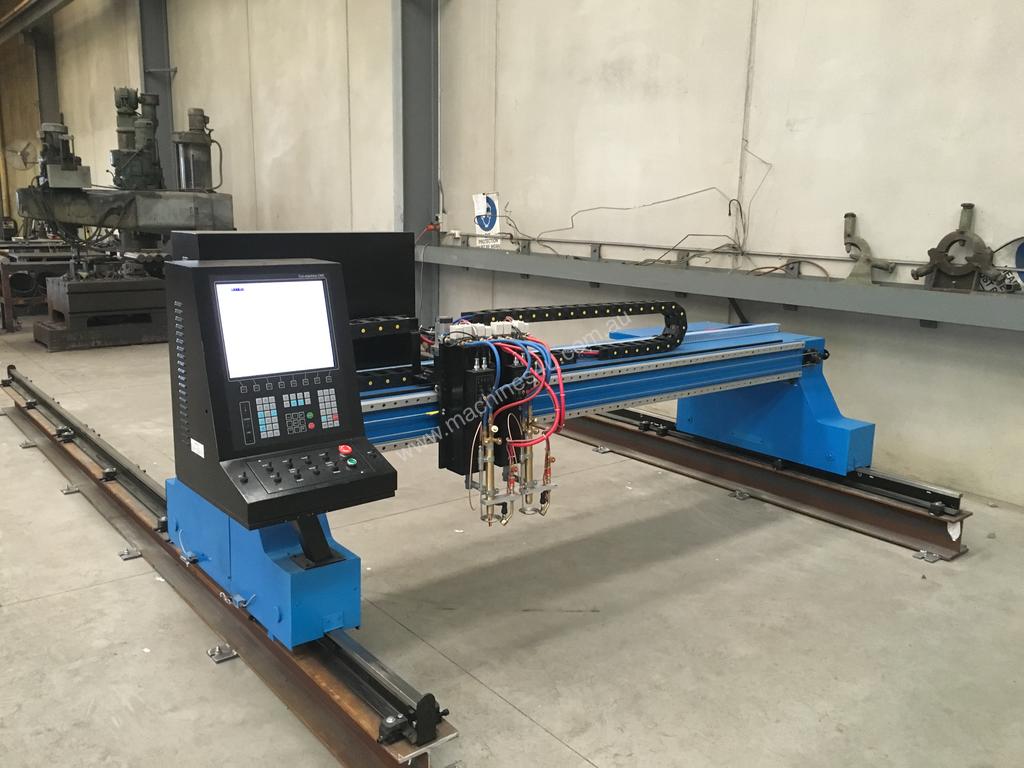

HC3060 CNC Oxy / Plasma Profile Cutter

FEATURES:

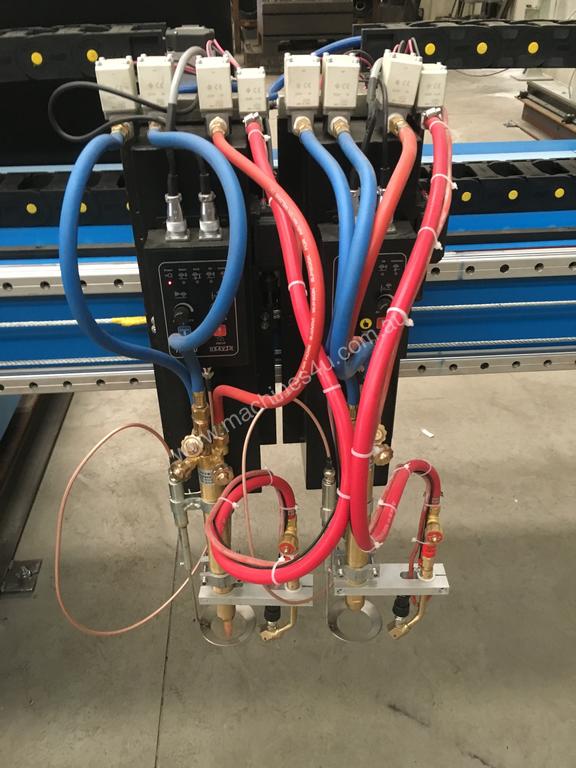

• Beam torch lifter transverse moving adopts single master, multi slaves mode , could fix max four lifter, namely four torch, every lifter equipped torch and torch lifting assembly.
• The back of beam could fix serious vertical torch.
• Longitudinal adopt dual drive mode.
• Longitudinal configure special T style track which equip high-precision rack, it adopts grinding process make sure machine runs stably and precisely.
• The newest products integrate various technological improvements;
• Panasonic servo motor, smooth movement, low noise;
• Cutting slot compensation, preheated time intelligent memory;
• Compatible for various types plasma cutting machine, and arc voltage automatic tracing function (optional configuration), precisely and practically.

Track distance (mm): From 2000mm, up to 4000mm
Track length (mm): 3000, can be unlimitedly extended
Torch height adjustment(mm): 150
Torch and amount: 1 Flame or plasma torch; for each additional cutting torch, effectively cutting width is reduced by 200mm
Effective cutting range (mm) 4600×1800
Moving speed(mm/min) 0-6000
Cutting speed (mm/min) 20-2000
Rack and pinion driven: Panasonic servo motor+gear box

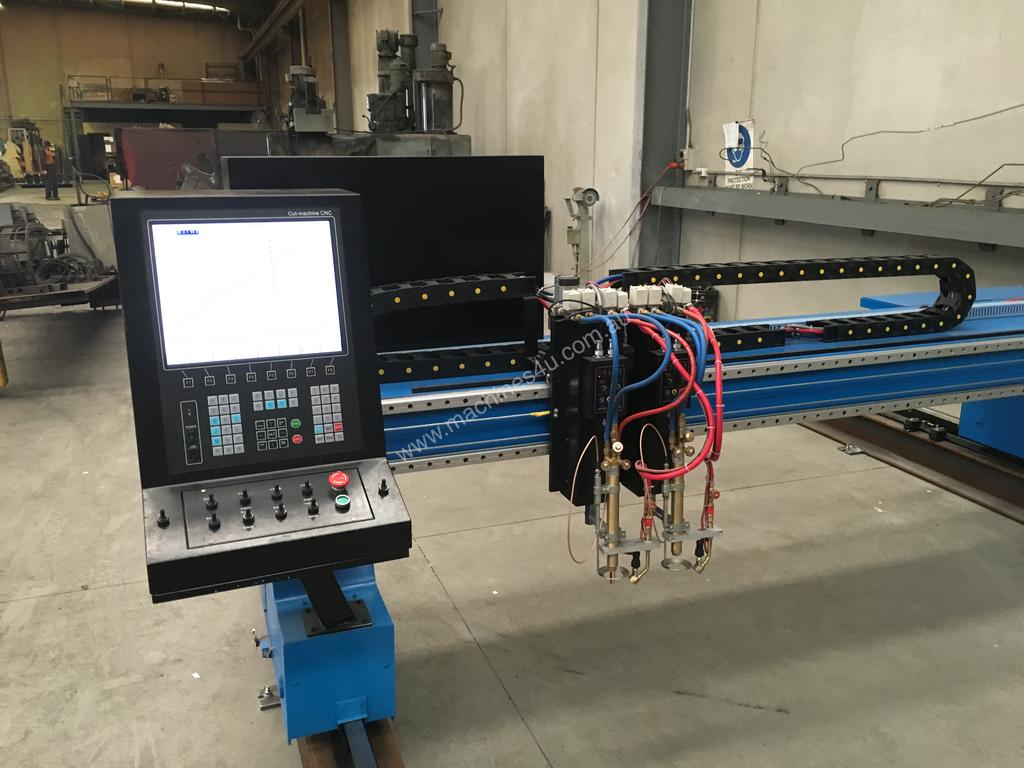

CNC system FL2500
Others: Beam down tracheal cable towline, gas valve, back to the fire prevention device assembly 180 Cutting torch,propane cutting nozzle 1,2,3, 1 Kit
software: Fastcam
Track Base and cutting table Manufacturers to provide drawings, customer production

Option

Plasma arc voltage auto height adjustment (THC)
